End Devices

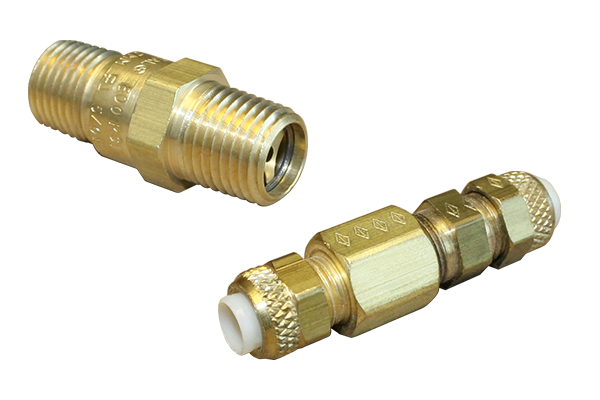

The CKV series check valves are in-line, one-way valves that prevent fuel from being siphoned back into an injector or injection pump which could delay a shutdown. There are two types of check valves: CKV2336 and CKV1WPS. The CKV2336 has a 1/4 NPT threaded male connection on each end for connecting to fuel line fittings or hoses.
The CKV1WPS check valve is typically mounted in the fuel bypass line of the last fuel injector. The CKV1WPS features a hollow bolt connection and a barbed 1/8 NPT connection for flex hose or fitting.
Sales Bulletin: CKV & PRV Series
7867 rev. 2014/12/05

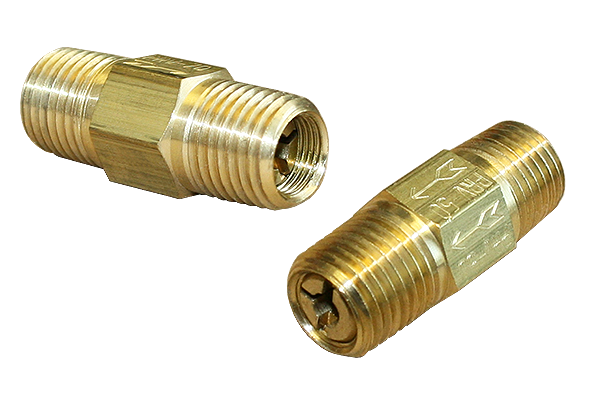

The PRV series pressure relief valves relieve overpressure in a fuel system usually caused by closing of a solenoid fuel valve. The PRV50 and PRV70 have a 1/4 NPT threaded connection on each end for connecting to fuel line fittings or hoses.
Sales Bulletin: CKV & PRV Series
7867 rev. 2014/12/05

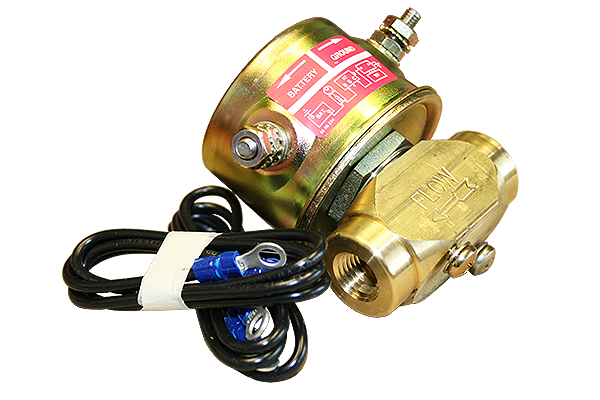

The SV series valve, which is solenoid operated, is a normally closed valve that opens when current is supplied from the battery through a magnetic switch. Temperature, level or pressure Swichgage instruments installed on the diesel engine and pump or compressor trip the magnetic switch breaking the circuit from the battery which closes the valve and stops the engine.
The SV-12 valve operates on 12-VDC, has a 1/4 NPT inlet and outlet and a full 3/16 in. (5 mm) orifice. A 24-VDC (SV-24) is optional. The SV valves open against 30 psi. (207 kPa) [2.07 bar] inlet pressure. For a greater flow rate valve, we offer the special series SV valve with a 1/4 in. (6 mm) orifice which opens against maximum pressure of 15 psi (103 kPa) [1.03 bar]. This valve is recommended where greater flow is required and only static head or low transfer pump pressures are encountered.
The Murphy SV-HP series valves open against diesel fuel transfer pump pressure up to 60 psi (414 kPa) [4.14 bar]. Models are available for 12- or 24-volt DC systems. The orifice is 1/4 in. (6 mm) using the same inlet/outlet and options as standard SV.
The SV Series fuel shutoff valve is for use with diesel engines with externally accessible fuel injection pumps. The volume of fuel required for the engine to operate must be able to pass through the 3/16 in. (5 mm) or 1/4 in. (6 mm) orifice of the valve. You must be able to attach the fuel valve directly onto or in close proximity to the fuel injection pump in order to close off fuel flow to the pump.
The SV series is NOT intended for use with engines having unit injectors or distributor type injection pumps. Use only with diesel.
Sales Bulletin: SV Series
99026 rev. 2014/09/27

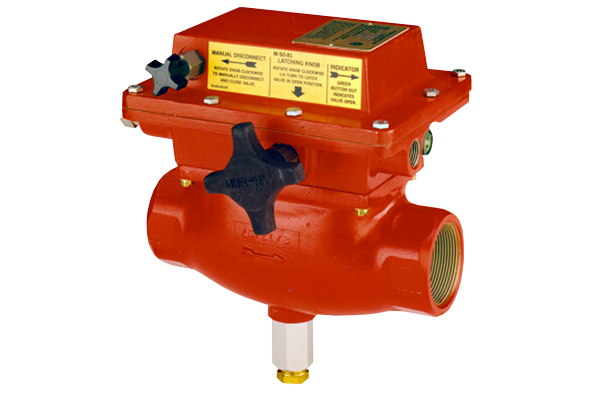

These fuel shutoff valves are semi-automatic devices for shutdown of natural gas-fueled engines. The valve is opened manually and closes when the electromagnet is energized and trips the latch. The valve can be closed manually by turning the disconnect knob. A normally energized model is available that holds the valve open electrically and closes when the coil is de-energized.
A vent in the valve body relieves trapped gas when the valve closes. A pop-out indicator button informs you when the valve is open or closed. The valve’s tripping power is provided by an engine ignition system or battery. Models are available for magneto, CD ignition or 12-/24-V battery.
The M2582 is a 1-inch (25 mm) valve with one NPT connection. It has one SPDT snap-switch. The valve body is made of sandcast aluminum. It does not include the open/close indicator button.
The M5081 is a 2-inch (51 mm) valve with two NPT connections. It has two SPDT snap-switches. The valve body is available in sandcast aluminum or cast steel (optional).
Sales Bulletin: M25 & M50 Series
94134 rev. 2014/12/05
Installation Instructions: M50/M25 Top Works Kit
00-02-0635 rev. 2016/03/08

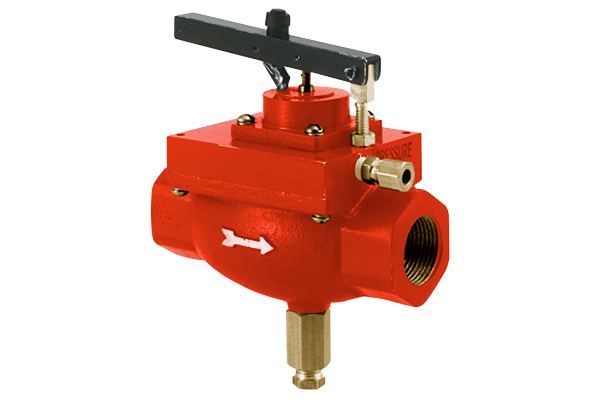

The MS582-P and M5180-P are pneumatically controlled fuel shutoff valves that open and close automatically or semi-automatically. The pneumatic control pressure can be air, oil or gas. A manual lever aids in opening the valve when control pressure is insufficient. A gas escape vent, when properly vented and maintained, releases trapped gas from the valve after shutoff. Basic operation is:
Automatic: As the control pressure/vacuum increase the valve will open. When the control pressure/vacuum decreases, the valve will close.
Semi-Automatic: If the control pressure/vacuum is too low and the valve does not open automatically, it can be opened manually by lifting the built-in lever arm and setting the latch. The latch resets automatically when control pressure rises enough to release it.
M2582-P is for 1-inch (25 mm) gas lines. It automatically opens at 5 psi (35kPa) [0.34 bar] and fully opens the seat at 15 psi (103 kPa) [1.02 bar]. The valve can be manually opened with the lever and latch against inlet pressure of 80 psi (552 kPa) [5.52 bar]. The latch will release after pilot pressure reaches 11 psi (17kPa) [.17 bar].
M5180-P is for 2-inch (52 mm) gas lines. It automatically opens at 5 psi (35kPa) [0.34 bar] and fully opens the seat at 15 psi (21 kPa) [.21 bar]. The valve can be manually opened with the lever and latch against inlet pressure of 100 psi (689 kPa) [6.89 bar]. The latch will release after pilot pressure reaches 11 psi (17kPa) [.17 bar].
Sales Bulletin: Models M2582-P and M5180-P
94129 rev. 2014/12/05
Installation Instructions: M2582, M5081, and M5180 Series
M-7980N (00-02-0206) rev. 2015/01/06

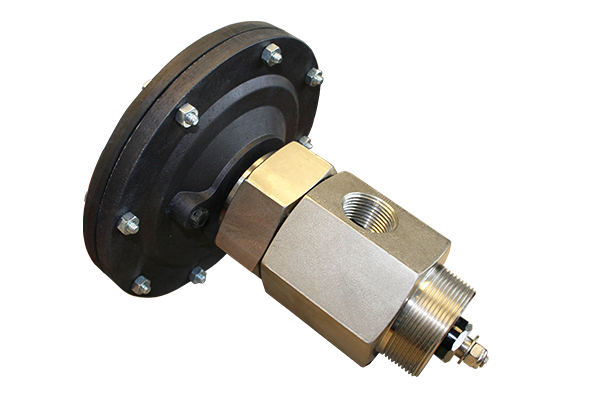

The DVU Series features pneumatically controlled dump valves. The valves open and close automatically by pneumatic control from a FW Murphy level controller and dump valve operator. Diaphragm actuated, the DVU series dump valves operate at 30–70 psi (207–483 kPa) [2.07–4.83 bar] and up to 2000 psi (13.8 MPa) [138 bar] vessel pressure (depending on the model).
A key benefit of this design is a hex union that provides the ability to replace the seat without removing the valve from piping. The DVU Series is compatible with FW Murphy level controllers. They feature a soft seat valve and manual valve operator. Designed for gas compressor scrubbers, the DVU Series can be used to dump any liquids compatible with its materials of construction.
Sales Bulletin: DVU Series
01069 rev. 2015/09/22
Installation & Operation Manual: DVU Series
00-02-0483 rev. 2016/02/16
