From plug-and-play to fully configurable control, our rugged Panel Systems are flexible for a wide range of engines and applications. Looking for auto start or manual start? Various throttling options? Mechanical or electronic engine control? Our rugged IP67 rated panels are final Tier4/Stage IV ready and are up to the task.
The MurphyLink Series ML2000 Panel is a superior panel offering which includes the powerful, yet simple-to-configure MPC-20 Controller. This controller is part of the Murphy PowerCore family and was developed to meet the need of manual or automatic control whether it’s starting/stopping, throttling or both. This controller also has the flexibility to be used on either mechanically or electronically governed engines supporting SAE J1939 CAN communications.
The flexibility of the MPC-20 controller allows for the same control panel to be used across many applications. This provides the operator familiarity with the controller and control panel in any application. The Control Panel utilizes industry standard Deutsch connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness (MIH) or John Deere OEM engine harnessing. ML2000 is Tier 4 / Stage IV ready and is easily viewable in full-sun conditions with a large 3.8-inch easy-to-read, monochrome transflective LCD.
The ML2000 Series panels are available in two rugged enclosures or a stand-alone flat panel option that can be dropped into an existing panel. The enclosure types to choose from are powder-coated cold rolled steel or polycarbonate NEMA 4X. Optional mounting kits are offered for the sheet-metal enclosure, which provide packagers and operators numerous mounting solutions to meet multiple applications.
Sales Bulletin - ML2000 Panel
1411441 rev. 2016/09/06
Application Drawing - ML2000 Panel
00-02-0970 rev. 2015/07/01
PowerCore Product Family Brochure
1511752 rev. 2017/02
Custom Solutions Brochure
1411595 rev. 2017/03
The MurphyLink Series ML1000-4X Panel is a superior panel offering which includes the powerful, yet simple-to-configure MPC-10 Controller. The MPC-10 is a general, all-purpose manual/auto start and manual/auto throttling engine controller designed with rental applications in mind. The controller is purposed primarily for applications where a wide array of inputs and outputs are not required.
The MPC10 supports J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety shutdowns, and follows a standard operating sequence of 22 machine states that happen in a predetermined order. Machine states can be set to zero if not needed or adjusted to fit the application. The menu structure is incredibly versatile, with the ability to change many parameters and settings from the face without the need of a PC tool, if desired.
The flexibility of the MPC-10 controller allows for the same control panel to be used across many applications. ML1000 is Tier 4 / Stage IV ready and features three configurable levels of passcode protection, perfect for rental applications. A free-of-charge PC Configuration tool is available to allow customers to change default settings and provide three levels of passcode protection. The ML1000-4X panel can be mounted directly to the engine or engine/application cover. The enclosure has a clear door for protection from foreign debris contacting the face of the controller.
Sales Bulletin - ML1000-4X Panels
1511726 rev. 2016/06/23
Application Drawing - ML1000-4X Panel
00-02-0971 rev. 2015/10/20
PowerCore Product Family Brochure
1511752 rev. 2017/02
Custom Solutions Brochure
1411595 rev. 2017/03
The MurphyLink Series MLC380 Panel is a superior panel offering that includes the powerful, yet simple-to-configure PV380 display. This display is part of the Murphy PowerView family and provides monitoring of Tier 4/Euro Stage 4 compliant electronic engines. The PV380 monitors multiple J1939 parameters and provides basic engine alarm/shut-down information.
The flexibility of the MLC380 allows for the same panel to be used across many applications. This provides the operator familiarity with the display and panel in any application. The panel utilizes industry standard Deutsch connectors and is compatible for use on the simplest to the most advanced, fully electronic Tier 4 engines, when used with the correct Murphy Industrial Harness or John Deere OEM engine harnessing.
The MLC380 panel has the ability for the software to be fully configured from the front user interface. If the factory default parameters are not the desired set points, the packager or operator has the ability to change these settings. The configuration tool also allows for the splash screen to incorporate a company logo. This panel is available in a rugged powder-coated cold rolled steel enclosure that can be mounted on or near the engine.
Sales Bulletin - MLC380 Panels
1511692 rev. 2017/10/02
Sales Bulletin - Ready To Run Panels
1611995 rev. 2016/09/26
Custom Solutions Brochure
1411595 rev. 2017/03

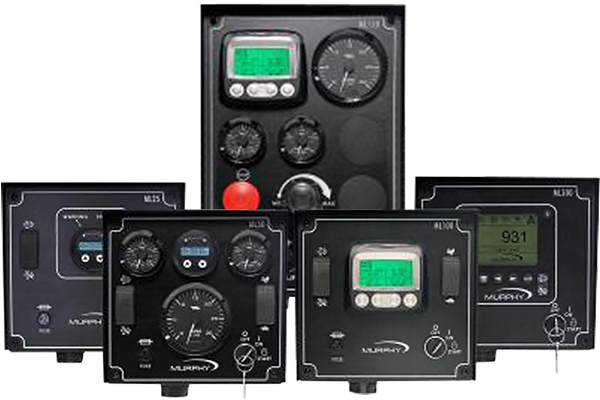

MurphyLink Panels are available in a variety of models featuring varying levels of features and functionality to suit your particular application. This panel series takes advantage of Murphy’s PowerView technology to integrate and display valuable insight from electronic J1939 engines. Panels equipped with a PV101 or PV300 display give operators more information than traditional gauges by allowing operators to view multiple engine parameters on a single screen.
ML Series Panels come with a variety of display and throttling capabilities, including gauge cutouts on some models that allow you to add critical gauges specific to your application. For applications with emissions requirements, some ML series panels can be equipped with Tier 4 controls. ML series panels are capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown with integrated throttle control.
Sales Bulletin - ML Series Panels
1211038 rev. 2013/06
Sales Bulletin - ML25 Panel
1211014 rev. 2014/11/03
Sales Bulletin - ML50 Panel
1211015 rev. 2016/09/07
Sales Bulletin - ML100 Panel
1211016 rev. 2014/11/03
Sales Bulletin - ML150 Panel
1211017 rev. 2015/08/27
Sales Bulletin - ML300 Panel
1211018 rev. 2014/11/03
Installation & Operations Manual - ML Series
00-02-0842 rev. 2013/12/17
Murphy’s Generator Control line features standard panels for all levels of use, from basic manual start to full-featured auto-start. Each standard panel is designed for maximum flexibility, allowing you to customize the instrumentation to fit your specific application. You get plenty of options with the short delivery time of a pre-engineered panel.
MGC 100-150 Panels feature:
· Full compliment of options
· High quality construction and components
· Standard panels shipped in 2 weeks or less
· Competitive pricing
Sales Bulletin - MGC Panels
0910470 rev. 2017/12/12
Sales Brochure - MGC Panels
05066 rev. 2019/06
How-to-Order Matrix - MGC Panels
The WHB Series open-type panels bolt directly to the engine flywheel housing. They include Swichgage protection for low engine oil pressure and high coolant or high oil temperature and have provision to add additional Swichgage instruments, such as a pump discharge pressure, voltage regulator, throttle cable and start button or switch. For diesel engines without shut-down solenoid in the injection pump, add a Murphy SV Series solenoid fuel shut-off valve or RP2300 series rack puller solenoid. Swichgage products are two instruments in one: (1) an accurate indicating gage with (2) a built-in, adjustable limit switch.
WHB Series Panel Kits include:
· Low Lube Oil Pressure Swichgage instrument
· High Coolant/ Temperature Swichgage instrument
· 117PH Magnetic Switch
· PB128S Emergency Stop Push Button
· Ammeter 60-0-60
Sales Bulletin - WHB SeriesPanels
03062 rev. 2014/11/04
