Murphy by Enovation Controls
Murphy by Enovation Controls is a leader in bringing superior display technology and an enhanced user experience to the tough, rugged environments you work in every day. By integrating cutting-edge technology such as Bluetooth, Wi-Fi and Ethernet in combination with our extensive application expertise and system integration knowledge, Murphy delivers unparalleled solutions. With a wide range of sizes, options and power, there’s a PowerView display that will be a perfect fit for your application.

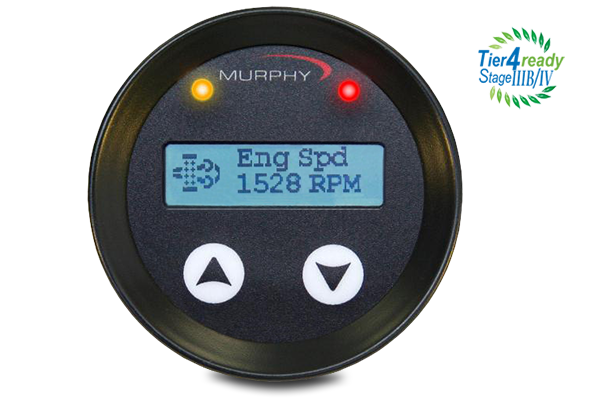

The PowerView PV25 is an engine and diagnostic display that integrates valuable electronic engine parameter data into a compact and economical design, suitable for rugged environments as well as in-cab applications. The PV25 features two push buttons for quick access to diagnostic fault code data and a back-lit graphic display along with two alarm indication LEDs for enhanced viewability and alarm notification.
This J1939-compliant device provides electronic engine parameter data, is simple to install, matches the PowerView line of rugged displays, and can be powered by 12-volt or 24-volt systems. A back-lit graphic display and two LEDs indicate Active-fault Alarm or Shutdown status. The PV25 diagnostic features save operational costs by displaying active and stored fault messages identified by the Suspect Parameter Number (SPN), Failure Mode Indicator (FMI) and the Occurrence Count (OC) using the SAE J1939 protocol. The PV25 displays up to 20 standard J1939 parameters in standard or metric units. Typical engine parameters include engine RPM, engine hours, oil pressure, coolant temperature, system voltage, percent load at RPM and more.
Sales Bulletin - PowerView PV25
1110920 rev. 2014/09/27
Sales Flier - PowerView PV25
1211089 rev. 2016/05
Installation & Operations Manual - PowerView PV25
00-02-0839 rev. 2012/09/21
Wiring Harness Accessories - PowerView PV25
1211194 rev. 2013/07/16

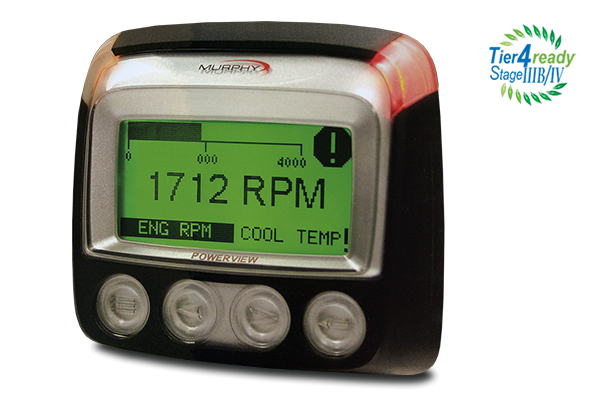

The PowerView PV101-C display is a multifunction tool that enables equipment operators to view standard engine and transmission parameters and active/stored trouble codes. The display can show a single or a four-parameter simultaneous display with text descriptions for most common fault conditions. The enhanced alarm indicators have ultra-bright alarm and shut-down LEDs.
All PV101 models share the following features: Multiple language options, Sender Input to select between backlight dimmer function or fuel level, Service Reminders which allow users to set hours for specific services, Selectable Source Address, the ability to select CAN bus Data Rate, view more than 50 standard SAE J1939 parameters, and helpful troubleshooting descriptions of supported parameters.
Sales Bulletin - PowerView PV101-C
1110823 rev. 2016/10/10
Sales Flier - PowerView PV101-C
1100005 rev. 2017/01
Configuration Software, Installation & Operations Manual - PowerView PV101-C
00-02-0797 rev. 2011/08/18
User’s Guide - PowerView PV101-C
00-02-0796 rev. 2013/04/08
Wiring Harness Accessories/PVA Gages - PowerView PV101-C
03020 rev. 2014/09/27
Wiring Harness Accessories/PVM Gages - PowerView PV101-C
0710179 rev. 2014/09/27
Parameter List - PowerView PV101-C
11110829 rev. 2013/04/17

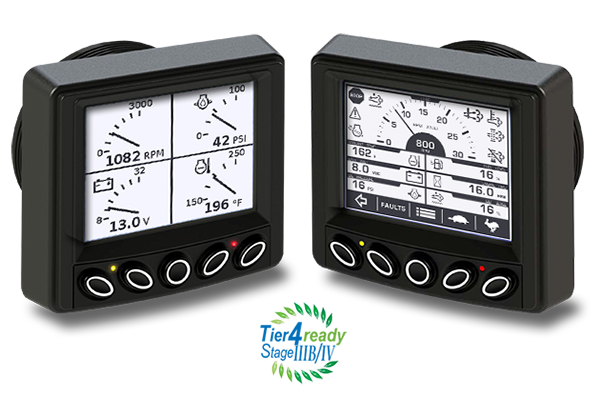

The Murphy PowerView PV350 and PV380 feature robust, multifunction displays for advanced monitoring of both electronic and mechanical engines. Both the PV350 and PV380 displays monitor engine and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD. The displays are capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown.
The PV380 is equipped with five tactile push buttons to quickly access a convenient menu. In addition, a backlit and heated graphic display with LEDs indicate alarm or shutdown status. Customize the PV300 Series displays using the PowerVision Configuration Studio, an intuitive tool designed to make customization simple. Using the software tool, users can tailor basic graphics, edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.
Sales Bulletin - PowerView PV380
1611971 rev. 2016/10/17
Sales Flier - PowerView PV380/MLC380 Panel
1511625 rev. 2017/02
Operation Manual - PowerView PV380-R2
00-02-0997 rev. 2017/04/03
Installation Manual - PowerView PV350 & PV380-R2
00-02-0998 rev. 2017/06/12
Wiring: Application Drawings - PowerView PV380-R2
00-02-0944 rev. 2015/02/01
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

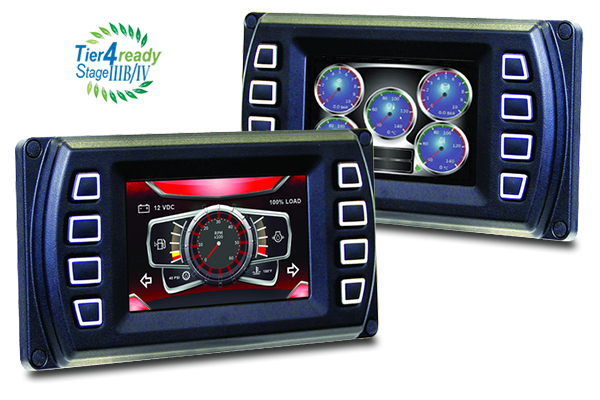

The PowerView PV450 is a compact, fully configurable display designed for use in modern electronic engines. It features a 4.3-inch screen, perfect for applications with tighter spaces. This compact display delivers the same powerful performance as Murphy’s larger configurable displays, integrating electronic engine, transmission and equipment information into an easy-to-read, full-color interface.
The PV450 display meets the requirements for Tier4/Euro Stage IV emissions monitoring from the factory. Customize the PV450 with Murphy’s PowerVision Configuration Studio software, a powerful tool that allows you to customize the look and feel of equipment screens, edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.
Sales Bulletin - PowerView PV450
1010638 rev. 2013/11/06
Sales Flier - PowerView PV450
1000023 rev. 2012/09
Installation Manual - PowerView PV450
00-02-0732 rev. 2013/05/02
Supplemental Manual - PowerView PV450, cCSAus, Class 1, Division 2
00-02-0826 rev. 2014/02/06
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

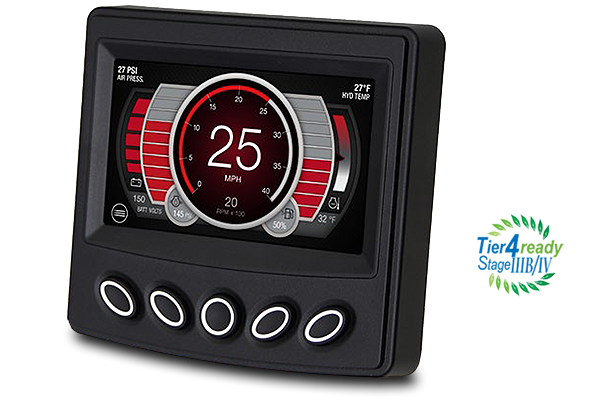

The PowerView PV485 is a customizable, all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications. Its rugged design offers a wide array of configurable I/O and supports both mechanical and J1939 electronic engines. The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier.
The PV485 controller is compatible with the PowerVision Configuration Studio software, so custom configurations can be quickly developed. With the configuration studio software, it’s easy to define the user interface screens, as well as the functionality and sequence of events controlled by the PV485. You can configure equipment control such as: autostart, pressure control, data logging and alarms. You can even add custom graphics and company branding to the user interface.
Sales Bulletin - PowerView PV485
1715064 rev. 2017/05/25
Sales Flier - PowerView PV485
1715037 rev. 2017/04
Installation Manual - PowerView PV485
00-02-1018 rev. 2017/05/23
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

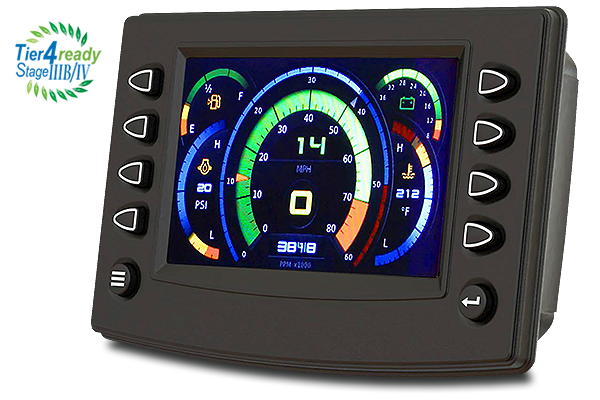

The PowerView PV780 display is a full-featured, configurable display that shows integrated engine, transmission and diagnostic information in an easy-to-read operator interface. Equipment functionality can be further integrated through the available I/O and controlled via the CAN bus. The PV780 features a full-color, 7-inch bonded LCD for brighter, smoother graphics and best-in-class sunlight readability. The rugged design makes this display a great solution for extreme environments.
The PV780 display is compatible with both mechanical and electronic engines and multiple languages. Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio software, which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.
Sales Bulletin - PowerView PV780
1211067 rev. 2016/02/02
Sales Flier - PowerView PV780
1211002 rev. 2017/01
Operations Manual - PowerView PV780
00-02-0859 rev. 2016/06/30
Installation Manual - PowerView PV780
00-02-0860 rev. 2016/06/30
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

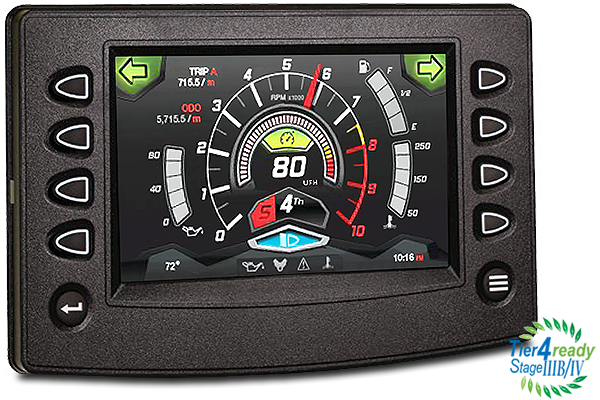

The PowerView PV780B is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The PV780B also offers all the features of Murphy’s popular PV780 with more power and memory. This sleek 7-inch display features an expansive 8GB of storage and a high-speed processor to boot quickly as well as seamlessly showcase graphics, transitions and videos.
The display’s bonded LCD can easily be viewed, even in full sunlight, and its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications. With its faster processor, this version of the full-color display adds more connectivity with Bluetooth and Wi-Fi capabilities.
In addition, the flash storage for the PV780B has doubled to 8GB. The 1000-nit 7-inch screen can easily be viewed, even in full sunlight. Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio software. This tool allows for quick creation of personalized user interfaces, custom parameters and specialized graphics for on-screen text, OEM branding and more.
Sales Flier - PowerView PV780B
1712046 rev. 2018/03
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

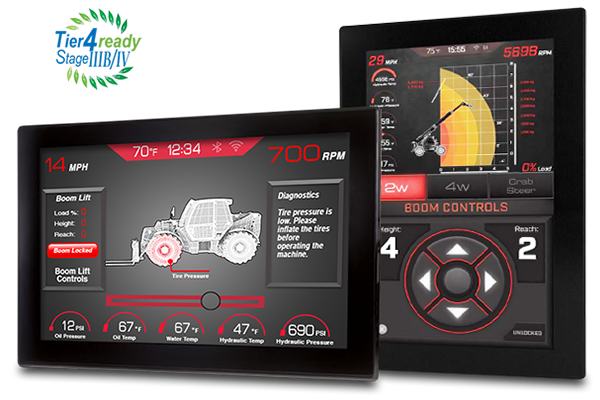

The PowerView PV1100 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. This large10.6-inch display features an expansive 8GB of storage and a high-speed processor to boot quickly as well as seamlessly showcase graphics, transitions and videos. The display’s bonded LCD can easily be viewed, even in full sunlight, and its glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications.
Murphy brings a whole new experience to your applications with the PowerView 1100. In addition to providing vital engine information, the PV1100 packs an infotainment hub in the cab with media playback from your phone via USB. It also boasts AM/FM stereo, Bluetooth and Wi-Fi connectivity. Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio software. This tool allows for quick creation of personalized user interfaces, custom parameters and specialized graphics for on-screen text, OEM branding and more.
Sales Flier - PowerView PV1100
1712047 rev. 2017/02
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

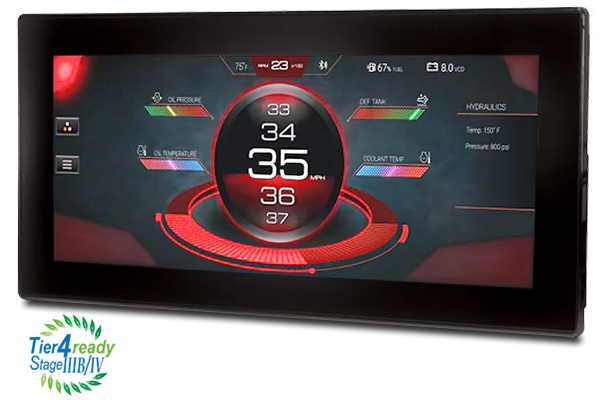

The PowerView PV1200 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. This large 12.3-inch display features an expansive 8GB of storage and a high-speed processor to boot quickly as well as seamlessly showcase graphics, transitions and videos. The display’s bonded LCD can easily be viewed, even in full sunlight, and its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications.
The PowerView 1200 offers all the features of Murphy’s popular PV780 with more power, more memory and more real estate to show vital application information on one screen. With its faster processor, this version of the full-color display adds more connectivity with Bluetooth, Ethernet and Wi-Fi capabilities while it includes an expansive 8GB of storage. Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio software. This tool allows for quick creation of personalized user interfaces, custom parameters and specialized graphics for on-screen text, OEM branding and more.
Sales Flier - PowerView PV1200
1712048 rev. 2017/02
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
PowerView Brochure
1712039 rev. 2017/06

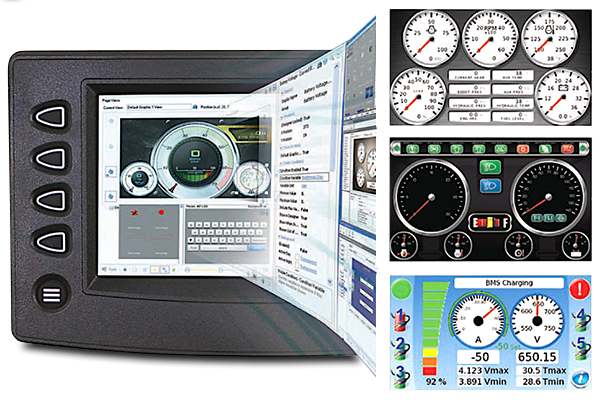

Murphy’s PowerVision Configuration Studio software allows you to customize multiple aspects of your PowerView/HelmView display from a personal computer. Choose from our library of icons and backgrounds or upload your own images to design uniquely customized equipment screens. The configuration tool offers varying levels of control – from basic display options to in-depth custom programming through C-code syntax scripting capabilities.
The software tool comes pre-loaded with more than 100 commonly used J1939 and NMEA parameters. In addition, the tool supports several protocols for machine integration, including J1939, CANopen, NMEA and proprietary CAN protocols through FreeForm CAN protocol. By performing the changes yourself through the simple interface, you no longer have to wait on the display provider to complete costly changes, plus you save time getting your product to market faster.
The configuration software is versatile enough to handle even the most demanding programming and application requirements. Programming features include: (1) Drag-and-Drop Interface for WYSIWYG programming, (2) State Machines with Visual Flow Diagrams, Transitions, Actions and Event Timers, (3) C/C++ Syntax Scripting Capabilities for In-Depth Programming, and (4) Data Simulation for Off-Line Viewing of Configurations.
Sales Bulletin - PowerVision Configuration Studio
1110914 rev. 2017/01
